FuelTech Sensoren, Ventile & Zubehör

Shift Knop Strain Gauge Sensor

Designed to use with FuelTech GearController* to perform powershifts.

Detects knob deformation to cut the ignition

H-pattern, sequential or inline application

CNC machined

*GearController: only compatible with dog engagement equipped gearboxes (Liberty Pro-Shift, Liberty Face Plate, etc.). Synchro gearboxes are not compatible with GearController.



Schaltknauf DMS-Sensor

275,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

WB-O2-Sensor

Bosch WB-O2 sensor compatible with the following FuelTech products:



WB-O2 Nano

Alcohol O2

WB-O2 Datalogger

WB-O2 Slim

Sensor life drastically reduced when used with leaded fuel, diesel or 2 stroke engines.



Thread size: M18 x 1.5

WB-O2-Sensor - Benzin

79,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

WB-O2-Sensor - Alkohol

NTK WB-O2 sensor compatible with our Alcohol O2 conditioner. Designed for high horsepower alcohol combinations. High accuracy and low AFR readings.



Thread size: M18 x 1.5

WB-O2-Sensor - Alkohol

699,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

BoostController2 Magnetventil

- Magnetventil verwendet, nur mit FuelTechBoostController oder BoostController2

- Spannung: 12V

BoostController2 Magnetventil

65,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Extern Map Sensor bis 10Bar inkl. Stecker Kit

This sensor is needed if you are exceeding the limit of your internal map sensor on your ECU or want to run an external map sensor on your setup. Reads up to 135.3 psi!



Output: 0.5-4.5V

Supply: 5V

Range: -14.7 psi to +135.3 psi (0-150 psi absolute)

Thread size: 1/8" NPT

Connector Pinout:

A - Ground

B - 5V

C - Signal



Hochpräzisionssensor Druck für jeder Art von Flüssigkeit oder Gas auf den Motor zu lesen.

150,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

PS-10B-Drucksensor inkl. Stecker Kit

Typically used to monitor fuel, oil, and wastegate pressure.



*Not compatible with PRO500/PRO600 or other complete FuelTech engine harnesses. Use PS-150 for these applications.



TECHNICAL DESCRIPTION

Output: 1-5V

Supply: 12V

Range: 0-10 bar

Thread size: 1/8" NPT

Connector Pinout:

1 - Ground

2 - Signal

3 - 12V

Hochpräzisionssensor Druck für jeder Art von Flüssigkeit oder Gas auf den Motor zu lesen.

127,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

PS-150-Drucksensor inkl. Stecker Kit

TECHNICAL DESCRIPTION

Output: 0.5-4.5V

Supply: 5V

Range: 0-150 psi

Thread size: 1/8" NPT

Connector Pinout:



A - Ground

B - 5V

C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)



Accuracy: 0.25% FS



Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)



Compensated Temp: -40°F to +257°F (-40°C to +125°C)



Operating Temp: -40°F to +257°F (-40°C to +125°C)



Zero Tolerance: 0.5% of span



Span Tolerance: 0.5% of span



Response Time: 1ms



Fatigue Life: 1M Cycles



Wetted Parts: 17-4 PH Stainless Steel



Enclosure: IP67 (IP65 for electrical code G)



Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)



Shock: Withstands free fall to IEC 68-2-32 procedure 1



EMC (Radiated Immunity): 100V/m



Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228



Weight: 35 Grams



PS-150-Drucksensor

124,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

PS-300-Drucksensor inkl. Stecker Kit

TECHNICAL DESCRIPTION

Output: 0.5-4.5V

Supply: 5V

Range: 0-300 psi

Thread size: 1/8" NPT

Connector Pinout:



A - Ground

B - 5V

C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)



Accuracy: 0.25% FS



Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)



Compensated Temp: -40°F to +257°F (-40°C to +125°C)



Operating Temp: -40°F to +257°F (-40°C to +125°C)



Zero Tolerance: 0.5% of span



Span Tolerance: 0.5% of span



Response Time: 1ms



Fatigue Life: 1M Cycles



Wetted Parts: 17-4 PH Stainless Steel



Enclosure: IP67 (IP65 for electrical code G)



Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)



Shock: Withstands free fall to IEC 68-2-32 procedure 1



EMC (Radiated Immunity): 100V/m



Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228



Weight: 35 Grams

PS-300-Drucksensor 0-300 psi (5V - Verwenden Sie w / FT500 und V8 PRO Harness)

124,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

PS-500-Drucksensor inkl. Stecker Kit

Typically used to monitor transmission, converter, clutch, and mechanical fuel pressure.



Output: 0.5-4.5V

Supply: 5V

Range: 0-500 psi

Thread size: 1/8" NPT

Connector Pinout:

A - Ground

B - 5V

C - Signal



PS-1500-Drucksensor

124,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

PS-1500-Drucksensor inkl. Stecker Kit

TECHNICAL DESCRIPTION

Output: 0.5-4.5V

Supply: 5V

Range: 0-1500 psi

Thread size: 1/8" NPT

Connector Pinout:



A - Ground

B - 5V

C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)



Accuracy: 0.25% FS



Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)



Compensated Temp: -40°F to +257°F (-40°C to +125°C)



Operating Temp: -40°F to +257°F (-40°C to +125°C)



Zero Tolerance: 0.5% of span



Span Tolerance: 0.5% of span



Response Time: 1ms



Fatigue Life: 1M Cycles



Wetted Parts: 17-4 PH Stainless Steel



Enclosure: IP67 (IP65 for electrical code G)



Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)



Shock: Withstands free fall to IEC 68-2-32 procedure 1



EMC (Radiated Immunity): 100V/m



Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228



Weight: 35 Grams



PS-1500-Drucksensor

124,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

PS-3000-Drucksensor inkl Stecker Kit

TECHNICAL DESCRIPTION

Output: 0.5-4.5V

Supply: 5V

Range: 0-3000 psi

Thread size: 1/8" NPT

Connector Pinout:



A - Ground

B - 5V

C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)



Accuracy: 0.25% FS



Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)



Compensated Temp: -40°F to +257°F (-40°C to +125°C)



Operating Temp: -40°F to +257°F (-40°C to +125°C)



Zero Tolerance: 0.5% of span



Span Tolerance: 0.5% of span



Response Time: 1ms



Fatigue Life: 1M Cycles



Wetted Parts: 17-4 PH Stainless Steel



Enclosure: IP67 (IP65 for electrical code G)



Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)



Shock: Withstands free fall to IEC 68-2-32 procedure 1



EMC (Radiated Immunity): 100V/m



Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228





Weight: 35 Grams

PS-1500-Drucksensor

124,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Drosselklappensensor (Ford) / GM-Anschluss

  • Drosselklappensensor (Ford)  / GM-Anschluss
Drosselklappensensor (Ford) w / GM-Anschluss

65,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Lufttemperatursensor

  • Lufttemperatursensor
  • GM Ansauglufttemperatursensor
  • Standard-IAT-Sensor für alle Fueltech ECU
  • 3/8 "NPT-Gewinde:
Lufttemperatursensor

25,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

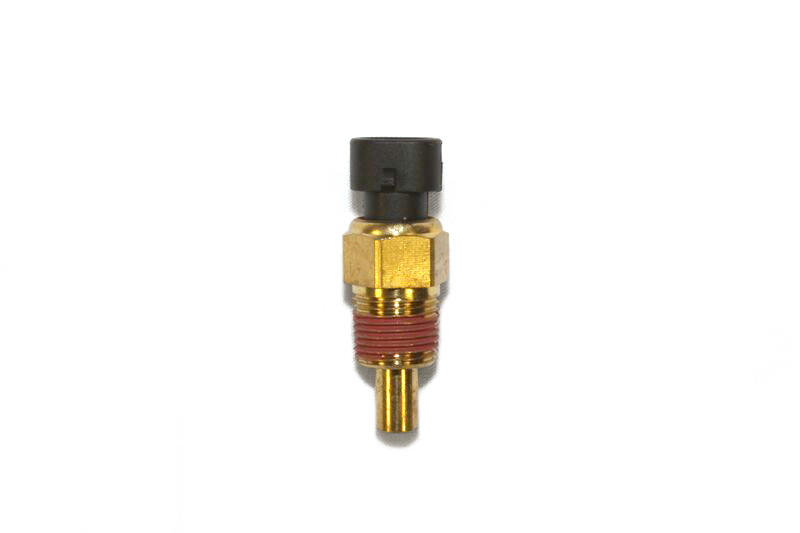

Wassertemperatursensor

  • Wassertemperatursensor
  • GM Wassertemperatursensor
  • Standard-CLT-Sensor für alle Fueltech ECU
  • 3/8 "NPT-Gewinde:
Wassertemperatursensor

30,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Temperatursensor

High quality stainless steel temperature sensor. These sensors are known for their accuracy and can be used in harsh environments. Most commonly used to measure air and fluid temperatures.



Supply: Ground

Range: 0-300°F

Thread size: 1/8" NPT

Wassertemperatursensor

61,50 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

CHT Zylinder Kopf Temperatursensor

The FuelTech Cylinder Head Temperature Thermocouple offers faster and more accurate temperature reading for engine head temperature.



The ring tip gives the sensor a lower thermal inertia and easier way to bolt to the head, allowing faster reading during temperature variation of the cylinder head.



Temperature range: 32°F to 2200°F



Wire lengths: 42"



The K-Type Cylinder Head Temperature Thermocouple Probe is compatible with the EGT-8 CAN and ETM-1 conditioners.



59,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Luft und Flüssigkeit Temperatursensor

The new FuelTech Air/Liquid Thermocouple offers accurate temperature reading for oil, coolant and intake air.



Temperature range: 32°F to 2200°F

Wire lengths: 24”

Thread size: 1/8" NPT

Tip length: .300"



The K-Type EGT Probe is compatible with the EGT-8 CAN and ETM-1 conditioners.



99,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Turbo Speed Sensor inkl Stecker Kit

Vital data in order to measure whether the turbo is operating within its compressor map and at its highest efficiency. By inputting blade count you can measure rotational speed and maximise your turbo output, allowing you to gain valuable data on turbo selection. *Note, this sensor will not read until the turbo speed is above 5000 RPM, if spinning the wheel by hand, the sensor will read 0 RPM.



347,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Travel Sensor inkl. Stecker Kit

The best way of monitoring your vehicle`s suspension and body movements. Available travel lengths: 0-4", 0-8".



Can be used with any FuelTech Power FT ECU.



TECHNICAL DESCRIPTION

4" Travel Sensor:

Total Travel: 4"

Length Closed: 9"

Length Extended: 13"

Mounting: 5mm Heim joints

Cable Length: 41"

8" Travel Sensor:

Total Travel: 8"

Length Closed: 13"

Length Extended: 21"

Mounting: 5mm Heim joints

Cable Length: 41"

Voltage/Output:

Supply voltage: 5V

Signal Output: 0.5V - 4.5V

Connector Pinout:

Pin 1 - Ground (Brown)

Pin 2 - Signal (Yellow)

Pin 3 - 5V (Blue)



334,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Back Pressure Dampening Canister

The FuelTech Backpressure Dampening Canister is a great addition to any turbocharged engine. Measuring the exhaust back pressure is vital data required to best determine the true efficiency of your combination.

FEATURES

By separating the back-pressure sensor from direct connection to the exhaust manifold using the FuelTech Backpressure Canister, the sensor will be protected from heat, moisture and also has pressure spike filtering naturally built into the canister.



This filtering assists in protecting the sensor and also allows the end user to see true indication of pressure in the exhaust manifold.



The FuelTech Backpressure Canister is of billet aluminum construction and measures 2 ¾” x 2 ½” with mounting holes 2” center to center. The sensor port and hardline inlet are tapped to 1/8” NPT. Add one to your project today!





169,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Flex Fuel Sensor inkl. Stecker Kit

Ethanol content is a basis for many functions in an engine. The ethanol content as a variable can be the difference between having optimised ignition timing, fuel injection and boost levels when tuning versus average output when not compensating for the variable.

FEATURES

The FuelTech Flex Fuel sensor is the way in which to monitor and vary the ignition timing, fuel injection and boost level based off the ethanol content in the engine’s fuel.





By setting up the FuelTech Flex Fuel sensor and optimising the parameters within FuelTech’s FTManager software, the tuner is able to compensate for a change in ethanol content and also monitor the fuel temperature. This is all pre-determined and setup within the FTManager software giving the end user the ability to simply select the flex fuel sensor under inputs, determine the content of the fuel when it comes to tuning and input that data into the Flex Fuel wizard. From there the specific tables are populated based off the default ethanol content entered and compensations applied around the default percentage.





The FuelTech Flex Fuel sensor has 3/8” push on/quick connect style fittings with a max flow of 1.76GPM or 400LPH.



109,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

VR - Hall Converter

The VR-HALL converter was designed to read an analog VR signal and transform it to a digital signal (Hall). Recommended when using VR speed sensors (found in most ABS systems) or when using VR fuel flow meters.

Not compatible with differential hall-effect or magnetoresistive sensors.



69,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

MAP Clamper

Used to freeze the stock MAP / MAF signal when it reaches a certain value, preventing the sensor from sending a value that is out of range for the stock ECU when going into boost.



99,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Nylon Hose für MAP-Sensor - 6ft

  • Nylon Schlauch für MAP-Sensor - 6ft
  • 4mm ID für Vakuum / Druckschlauch
  • Zur Verwendung mit jedem Fueltech ECU oder Fueltech BoostController
Nylon Schlauch für MAP-Sensor - 6ft

5,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Hall Effect RPM / Speed Sensor inkl. Stecker Kit

Can be used to read engine RPM or crank triggers. Can also be used to read wheel speed, gearbox speed, etc. with proper trigger wheel.

Connector Pinout:

  • A - 5-16V
  • B - Signal
  • C - Ground
Raddrehzahlsensor

98,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

MSD Hall Effect cam Sync Sensor

Hall Effect Cam Sync Sensor w/ LED.



This sensor is used with our BBC 1" Raised Cam Sync mounting bracket.

Raddrehzahlsensor

69,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Driveshaft Sensor / mit Halter

Antriebswellen- Sensor  ( RWD Fahrzeuge)

Antriebswellen- Sensor w / Halter, 5 / 16-24 '' (Use w / RWD Fahrzeuge)

150,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Davis Driveshaft Sensor

Davis Technologies sensors are extremely high quality Hall Effect type, capable of measuring speeds up to 15 KHz. These sensors are triggered by ferrous metal, NOT Magnets, allowing users to trigger from our custom rings, gear teeth, or even bolt heads.



Compatible with the following ECUs:

FT600 / FT550 / FT500 / FT500LITE / FT450

5-20 Volt input

Threaded Body: 3/8″-24 x 2″

Length: 13"

*Must be used with a Davis split collar.

Antriebswellen- Sensor w / Halter, 5 / 16-24 '' (Use w / RWD Fahrzeuge)

175,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Racepak Split Collar

Racepak’s 8-magnet driveshaft split collars are used in conjunction with our driveshaft sensor. These collars will pick up driveshaft RPM sooner than a conventional 2-magnet collar.

Racepak Split Kragen

99,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Davis 32 T Driveshaft Split Collar

Davis Technologies 32 tooth split collars are the only collars on the market with 32 triggers, providing unparalleled resolution, speed and accuracy. Utilizing 32 precision machined teeth instead of magnets provides a very precise trigger on the edge of the trigger as opposed to a variable magnetic field.



32 Triggers

Extreme Accuracy

Precision Machined

Available in various diameters.

Compatible with the following ECUs:

FT600 / FT550 / FT500 / FT500LITE / FT450



*Must be used with a Davis driveshaft sensor.

Racepak Split Kragen

175,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

BBC Cam Sync Montagewinkel & Magnet Kit

BBC Cam Sync Montagewinkel & Magnet Kit

BBC Cam Sync Montagewinkel & Magnet Kit (1,000 '' angehoben Cam)

142,24 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Shifter Handle Strain Gauge Senson



 Replaces the stock “H” G-Force long levers. Use with FuelTech GearController or FT600 to allow gear change at full load without clutch, in non-clutchless manual transmissions.



Normally used in front wheel drive Honda B-series and GF-5R manual transmissions for "clutch assisted" rear wheel drive.



*Not required in cases of clutchless G-Force transmissions.



Length: 8.5"

Thread size: 7/16-20"

Schaltstange mit Dehnungssensor (DMS).

299,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

16 - Way CPC Connector Kit

Whether you're building your own harness or modifying an existing one, this CPC connector kit will make it easy for you to pass wires through your firewall.



Kit Includes:



Male and female connectors w/ clamps

16 Male terminals, 14-18 AWG

16 Female terminals, 14-18 AWG

PS-150 / PS-300 / PS-1500-Drucksensor-Plug-Kit (je)

89,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

24 - Way CPC Connector Kit

Whether you're building your own harness or modifying an existing one, this CPC connector kit will make it easy for you to pass wires through your firewall.



Kit Includes:



Male and female connectors w/ clamps

24 Male terminals, 14-18 AWG

24 Female terminals, 14-18 AWG



PS-150 / PS-300 / PS-1500-Drucksensor-Plug-Kit (je)

109,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

37 - Way CPC Connector Kit

Whether you're building your own harness or modifying an existing one, this CPC connector kit will make it easy for you to pass wires through your firewall.



Kit Includes:



Male and female connectors w/ clamps

37 Male terminals, 14-18 AWG

37 Female terminals, 14-18 AWG



139,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Nitrous Solid State Relay

This solid state relay is required when running dual solenoid / big stages of nitrous. One relay required per nitrous stage.



Use with FT600 / F550 / FT500 / FT500LITE / FT450 integrated nitrous controller.

99,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Relay inkl Sicherung 40A

High quality sealed relay which is typically used for ECU, injectors, and coils when building your own harness.



One relay required per item being wired.



Electrical Connections:

85 - Trigger - FT auxiliary output (activated when switched to ground)

86 - Switched 12V

30 - Battery 12V

87 - Output for load - Normally open contact - 40A

10,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Temperatursensor Stecker Kit

Temperatursensor Stecker Kit

Temperatursensor Stecker Kit

4,74 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

High Output Zündspule Stecker Kit (je)

High Output Zündspulen Stecker Kit (je)

High Output Zündspule Stecker Kit (je)

7,59 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

3-Wege-Controller-Boost-Ventil

Use with FT600 / FT550 / FT500 / FT500LITE / FT450 integrated boost controller.

Pressure Input: 1/8" NPT

Output to Wastegate: 1/8" NPT



Can not be used with CO2. For drag race applications, use our Boost Controller Dual Valve Block.



Wastegate pressure sensor (PS-150) is also needed for the integrated boost controller included in our PowerFT ECU line up (FT450 and up).



3-Wege-Controller-Boost-Ventil

45,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Boost-Controller- Dual Valve

Use with FT450 / FT500LITE / FT500 / FT550 / FT550LITE / FT600 integrated boost controller.

  • Pressure Input: 1/8" NPT
  • Output to Wastegate: 1/8" NPT
  • Fittings made to accept 1/4" hose

Wastegate pressure sensor (PS-150) is also needed for FT450/500LITE/500/550/600 integrated boost controller.



(Verwenden Sie w / FT500-Boost-Controller)

199,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Boost-Controller Dual Injector Block

Use with FT600 / FT550 / FT500 / FT500LITE / FT450 integrated boost controller.



Pressure Input: 1/8" NPT

Output to Wastegate: 1/8" NPT

Recommended injectors (not included):

High impedance Bosch 1700 cc/min (165 lb/hr)

High impedance Bosch 2200 cc/min (210 lb/hr)



Wastegate pressure sensor (PS-150) is also needed for FT500/FT600 integrated boost controller.



(Verwenden Sie w / FT500-Boost-Controller)

125,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Pan Vakuumsensor inkl. Stecker Kit

Monitor crankcase vacuum inside your engine to make sure piston rings are sealing properly in the cylinders.



Output: 0.5-4.5V

Supply: 5V

Range: -15 psi to +15 psi (0-30 psi absolute)

Thread size: 1/8" NPT

Connector Pinout:

A - Ground

B - 5V

C - Signal

Pan Vakuumsensor

150,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Sealed Relay 40A

 High quality sealed relay which is typically used for ECU, injectors, and coils when building your own harness.



One relay required per item being wired.



Electrical Connections:

85 - Trigger - FT auxiliary output (activated when switched to ground)

86 - Switched 12V

30 - Battery 12V - Use fuse

87 - Output for load - Normally open contact - 40A

87A -  Normally closed contact

Hella Sealed Relay 40A

19,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Staging / Brake Control Solid State Relais 20A

FEATURES

This relay can be used for the following:

FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Staging Control

FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Brake Control

Fast switching speed which is perfect for PWM control and for use as a normal relay. No mechanical parts inside. Silent operation.



12V Solid State Relay

Max Current: 20A

PWM frequency: 0-1000Hz

Dimensions (L x W x H): 27mm x 27mm x 26mm (1.07in x 1.07in x 1.02in)

Weight: 30g







ELECTRICAL CONNECTIONS:

30 - Switched 12V - Use fuse

85 - Not connected

86 - Trigger - FT auxiliary output (activated when switched to ground)

87 - Output for load - Normally Open contact - 20A:





Hella Solid State Relais 20A

65,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Hella Sealed Relay-Halter

Sealed Relaissockel

Zur Verwendung mit  Hella Sealed Relay 40A

Hella Sealed Relay-Halter

26,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

Spark Plug Gapper

DESCRIPTION

Save time and precisely gap your spark plugs with our new billet spark plug gapping tool.



To use, simply place spark plug as shown in the picture and insert desired feeler gauge between ground strap and electrode. Turn knob clockwise until the ground strap is tightly pressed against the feeler gauge. Then turn knob counterclockwise to create space between tool and feeler gauge and remove spark plug.









TECHNICAL DESCRIPTION

Sturdy tool with threaded adjustment and standard fitting for spark plugs.

Black anodized aluminum body with engraved FuelTech logos.

Hardened steel grip and thread ensuring high resistance and durability.

The steel surface that touches the spark plug may oxidize on contact with water.

If exposed to moisture, it is suggested to dry it with compressed air and apply lubricant.

Compatible with NGK 6061, NGK 5671A, NGK BKR9EIX and similar spark plugs.

Not compatible with 18mm thread and longer style spark plugs.

Dimensions: 5.82" x 1.25" x 1.25"

Weight: 9.87oz



99,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

CDI RACING IGNITION COIL BRACKET KIT

Bracket kit designed to mount (4) FuelTech CDI Racing Ignition Coils

Made from lightweight billet aluminum, only 13.1 oz

Includes (4) 1/4” socket head cap screws to mount the coils to the bracket

(4) 1/4” threads in the back, front, and bottom for mounting to the chassis



125,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

FTSPARK BILLET MOUNTING BRACKET

Simplify installation of your FTSPARK with our chassis mounting bracket.



Available sizes: 1.375", 1.500" and 1.625"



225,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

VACUUM DISTRIBUTION MANIFOLD

FuelTech's billet vacuum distribution manifold is the perfect solution for running and organizing all of the vacuum lines on your race car. With 7 vacuum ports there is plenty of room to run all of your vacuum lines for blow off valves, wastegates and more!



59,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1

VACUUM DISTRIBUTION MANIFOLD

FuelTech's billet remote pressure sensor mounting block is the perfect solution to mount your pressure sensors in one common place, Each port is individually connected from top to bottom allowing you to run up to 4 separate pressure sensors on a small light weight billet mounting block away from vibration and for easier access.



 *Sensors not included.



59,00 €

  • verfügbar
  • ca. 3-7 Tage Lieferzeit nach Zahlungseingang1
